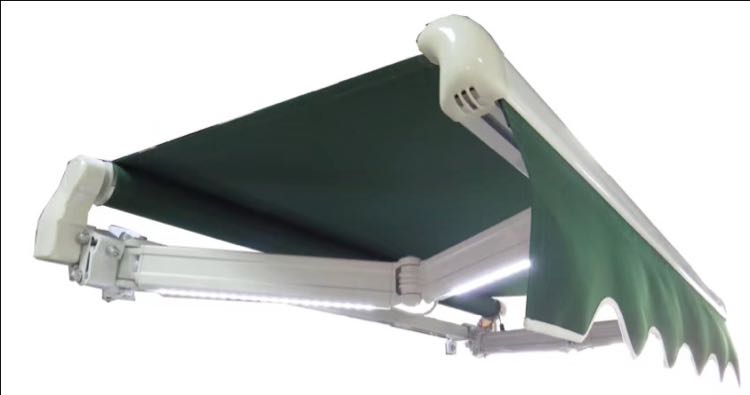

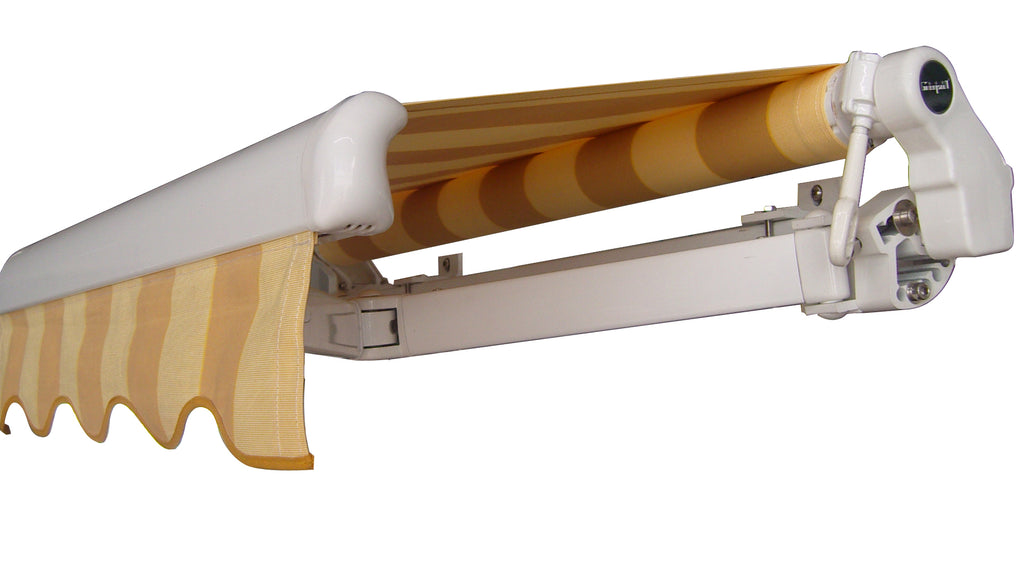

Manual Retractable Patio Awning, Model 660

Manual Retractable Patio Awning (Model 660)

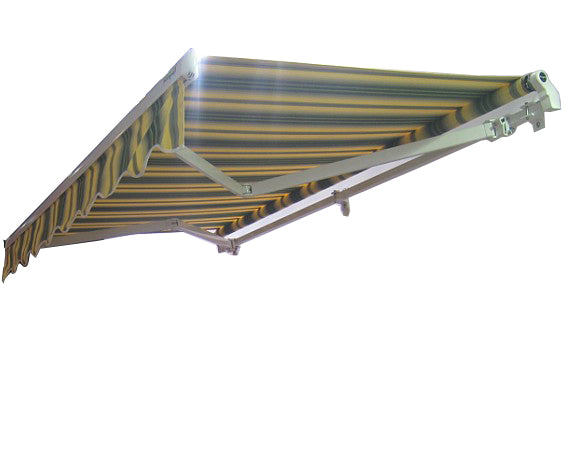

A manually operated retractable awning for patio and terrace shade. The crank handle and gearbox let the user extend or retract the canopy without electrical power.

Configuration listed for this model

• Maximum listed size: 6 m width × 4 m projection; available arm lengths: 1.5, 2, 2.5, 3, 3.5 and 4 m.
• Adjustable pitch: 5°–75°.
• Roller options: 70 or 80 mm, aluminum or steel. Front bar: 95 × 68 mm aluminum; square bar: 40 × 40 mm.
• Arm profiles: 55 × 27 mm or 60 × 30 mm; reinforced options: 65 × 35 mm or 80 × 37 mm.
• Gearbox ratio: 1:11. Powder coated frame, die cast aluminum connectors, and polyester or acrylic fabric options.

Questions buyers often ask

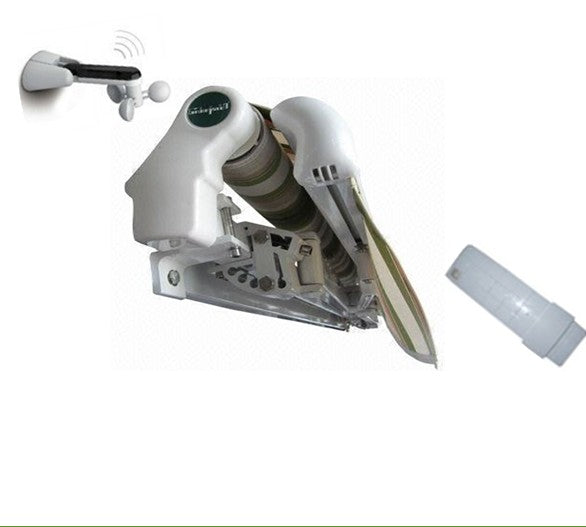

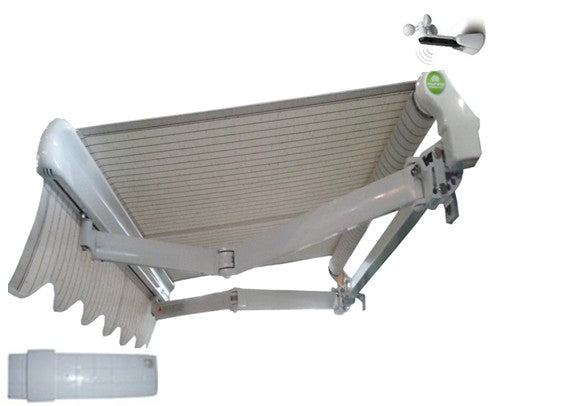

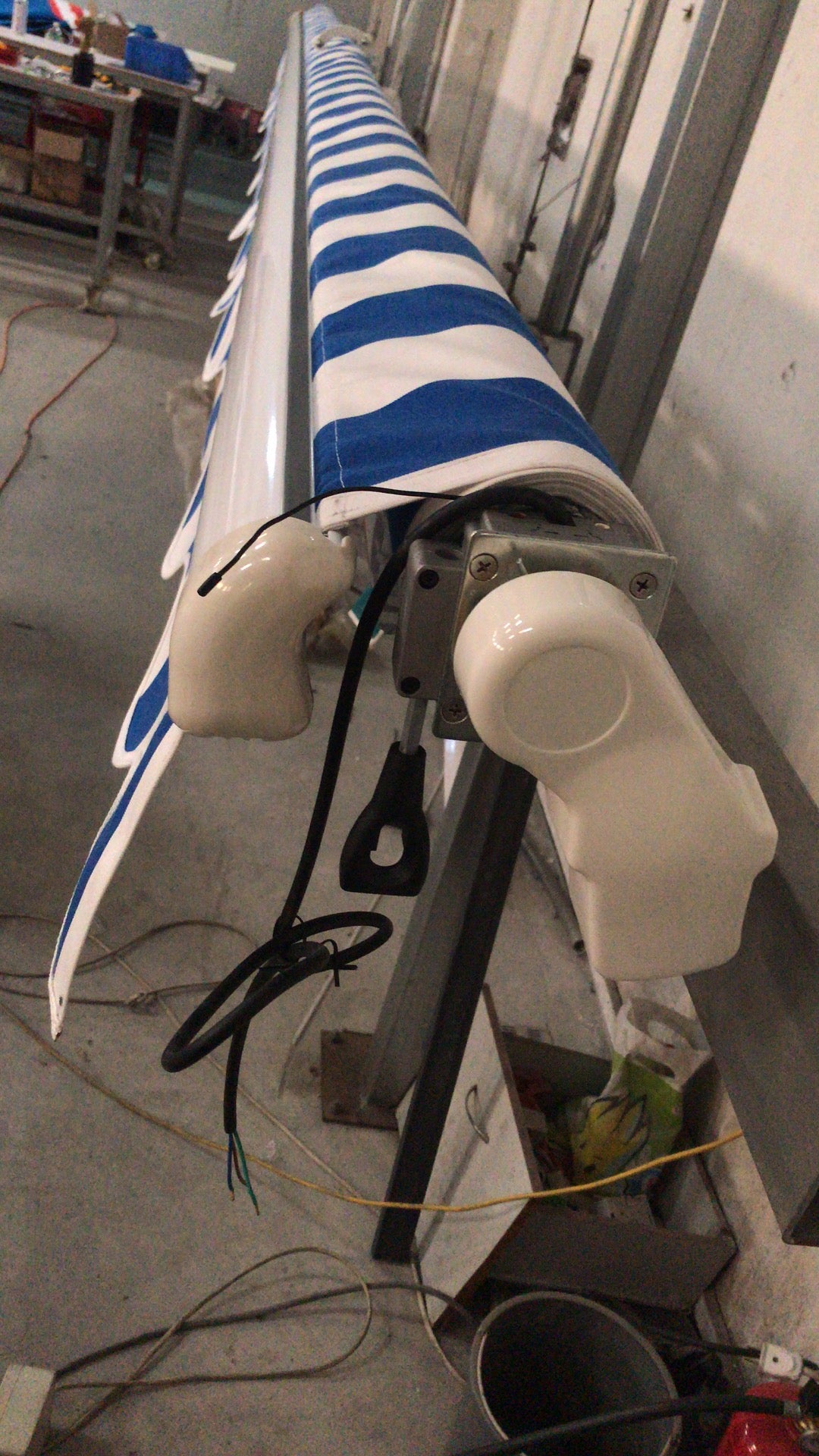

Does this awning require electricity? The manual gearbox and crank handle do not. The original listing also mentions motorized configurations; confirm the control method when requesting a quote.

What should I provide for a quote? Share the installation location, required width and projection, preferred fabric, and whether manual or motorized operation is needed.
